Inside of Wood Post to Inside of Wood Post Cable Rail Kit by Rail FX
What It Is
The 300 Series by Rail FX is a stainless steel cable railing kit designed for straight, inside-of-post cable runs — especially in wood railing applications. It’s one of RailFX’s classic cable kits and is meant to give you a sleek, modern infill option that’s relatively easy to install and durable for outdoor decks or balconies.
Key Features
Mounting & Compatibility
- Inside-of-post to inside-of-post mount: The cable runs straight through drilled holes in your posts, so the fittings are mostly concealed.
- Best with wood posts: Intended for minimum 4×4 wood end posts, though it can be adapted to other setups with the right fittings.
- Straight cable projects: Ideal for level runs (not pitched/stair sections).
Hardware & Materials
- Adjust-a-Body® tensioner: Screws into one post to tension the cable.
- Push-Lock® Lag fitting: Secures the cable on the opposite end.
- 1/8″ Type 316 stainless steel cable and fittings: Excellent corrosion resistance, great for exterior use.
- Made in the USA and designed for long-term outdoor performance.
Length Options
- Cable runs in the 300 Series are available in a range of lengths (e.g., 5 ft to 50 ft) so you can pick based on your deck or balcony span.
About this product...

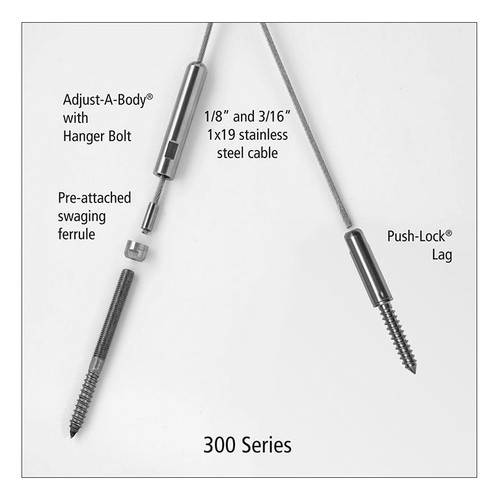

For wood posts, use the 300 Series. The tensioning device is an Adjust-a-Body® with Hanger Bolt, which lags into the wood post on one end. A Push-Lock® Lag is lagged into the other end. When taking cable railing through a corner, do not bend the cable past 45⁰ at any one time. If turning 90⁰, a 2-step turn using a double corner post configuration is required as illustrated in Deck 2. Installing the 300 series cable rail system on your deck will create a non obstructive view. It offers a sleek modern look. All Rail FX cable rail systems are installer friendly. Can be used with any species of wood or metal railing. All Rail FX terminals are made from Type 316 stainless steel, the most corrosion, rust-resistant stainless steel. It is environmentally friendly, containing at least 65% recycled material.Designed to be tamper resistant, with a 10-year parts warranty.
DETAILS:
- Rail FX Cable Rail
- 300 Series
- Use where the back side of one post is limited
- Proudly made in the USA
- Made from 1/8" High Quality 316 Grade Stainless Steel
- Minimum of 3" of clearance between end post and structure is required.
- One of the easiest cable rail system to install
INCLUDES:
- 1 - strand of cable with swag
- Adjust-a-body with hanger bolt
- push lock lag
Click HERE for installation:
