French Door 80 in. Astragal Kit by Freestyle
What an Astragal Kit Is
A French door astragal kit is a center molding and hardware assembly used on double door installations (particularly 80 in tall French/screen doors) that:
✔ Bridges the gap between two doors
✔ Lets you open both doors without a fixed center post
✔ Provides a place to secure the “inactive” door with flush bolts
✔ Helps reduce drafts, dust, insects, and improve security
✔ Is designed to work with screen or storm doors in French-door setups
In simple terms, it’s what makes two doors function nicely as one unit while still letting you secure one side when you don’t want it open.

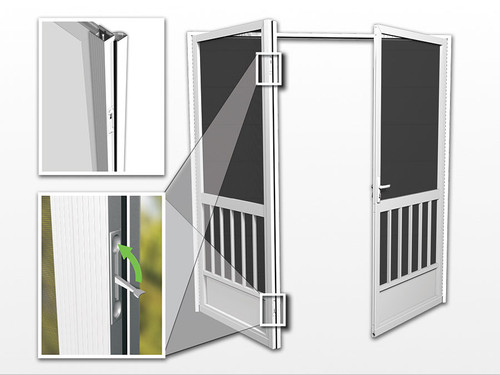

How the Freestyle / Madden Astragal Kit Works
- Center Gap Solution – The astragal runs vertically between the two doors and fills the space where the jamb would be. This means no permanent center post blocking your opening — great for moving furniture or maximizing flow to patios.
- Flush Bolts – Built-in flush bolts at the top and bottom allow you to lock the inactive (secondary) door in place for security and weather sealing. They slide into receptacles in the header and threshold.
- Rust-Free Components – Designed for exterior use with rust-resistant hardware, so it holds up outdoor exposure long-term.
- Compatible with 80 in Doors – This specifically fits standard 80 in tall French door assemblies (often used with matching double screen doors) and is paint-matched to the door style.
Why You’d Use One
For Screen/Storm Doors
If you’re installing a pair of screen or storm doors as a double (French) set, an astragal kit lets you:
- Open both doors fully with no obstruction
- Secure the inactive door with internal flush bolts
- Maintain a clean, finished look with no bulky center post
This is especially beneficial when the opening is large, such as access from a patio/deck to a backyard.
Enhanced Access
Because there’s no fixed post when both leaves are open, it’s much easier to bring large items (furniture, grills, etc.) through the opening.
About this product...
ALL OUR ASSEMBLED DOOR KITS ARE ABLE TO BE MADE INTO FRENCH DOORS AND FEATURE FRENCH DOOR ASTRAGAL HARDWARE.
Our exclusive french door Astragal kit allows you to open both doors leaving no obstructions in the opening. And with no center post, you can easily move furniture in and out and have a larger entrance for accessing outdoor patios for entertaining. Fix or unlock your french screen doors with convenience and ease. Flush Bolts located at the top and bottom of the Astragal are easy to operate and provide a quick and effective way to open and close your “fixed” screen door. The French Door Astragal kit is made of all rust-free components. They are not only maintenance free they will last as long as the door itself.
DETAILS:
- Maintenance free
- No center post
- Flush bolts for a fixed door
- Best solution for double screen door applications
- Designed to be used with (2) of our standard assembled 80 in. screen door kits.
- Paint matched for our doors.
Installation Instructions:
- https://www.maddenindustries.com/downloads/instructions/PCA%20Double%20Screen%20Door%20Instructions.pdf
