Cortex concealed fastening system for Azek decking
What Cortex Fasteners Are
Cortex is a hidden fastening system made by FastenMaster that uses special screws + matching plugs to secure deck boards from the top down while keeping the screw heads completely hidden once installed.
- The screws are high-quality deck screws with a TORX® ttap® drive (reduces stripping and improves drive quality).
- The plugs are material-matched to the decking boards (including AZEK PVC), so once tapped in, they nearly disappear visually.
- Also available are collated plugs on a strip to save installation time and make alignment easier.
How Cortex Works
- Drive the screw straight down through the deck board into the joist with a drill. The screw’s special head and setting tool help ensure it’s driven to the correct depth.
- Insert the plug (typically made from the same board material or color-matched) into the countersunk hole.
- Tap it flush with a smooth-face hammer — the screw head is now fully concealed.
This leaves you with a smooth deck surface with no visible fasteners — just color-matched plugs that blend into the board.
PACK SIZES:
- 100sq. ft. (350 screws - 400 plugs - 3 bits)
- 300sq. ft. (1050 screws - 1200 plugs - 6 bits)
Cortex now comes with the following product enhancements:
- TORX® ttap® Drive System: This system is almost impossible to strip-out and the fastener is easily removed. In addition, the stability button keeps the fastener straight through installation.
- Modified Fastener: New thread design reduces installation torque and dramatically increases fastener strength. Length moves from 2-3/4” to 2-1/2”.
- Stronger Setting Tool: Optimized for extreme pro contractor use. Stronger bit material and industrial grade felt will enable you to install 350 fasteners on one Cortex Setting Tool.
100 square foot package and a 300 square foot package. All screws, plugs, and setting tools are included in every box.
*ALL AZEK DECKING COLORS AVAILABLE*
- FAST AND EASY: The deck boards are fastened in the same way as with a traditional deck.
- STRONG: A through-fastened deck offers the highest level of board-to-joist connection and deck racking strength.
- VIRTUALLY INVISIBLE: The Cortex plugs are textured to match specific decking brands, blending in naturally with the grain pattern.
- COST EFFECTIVE: The Cortex system is less expensive than virtually any other hidden fastening system and it is so easy to install! Deck pros will save money and save time installing it.

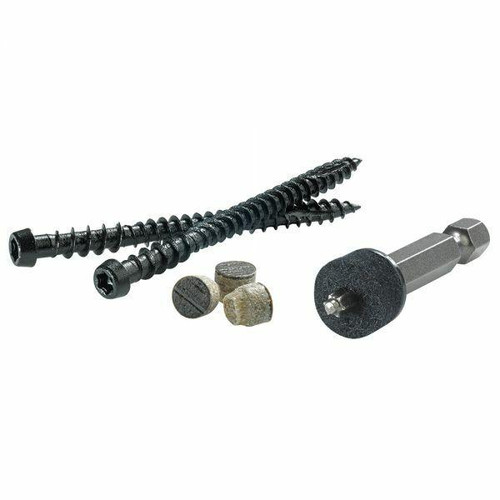

INCLUDED IN EVERY PACKAGE:
- Cortex Screws
- Cortex Plugs
- Cortex Setting Tool
The FastenMaster Cortex Concealed Fastening System is the fastest, easiest way to conceal the heads of your deck screws on specific deck types.
* Coverage based on 6" wide boards with 16" o.c. joist design.
Square foot coverage may vary based on joist spacing and deck design.
